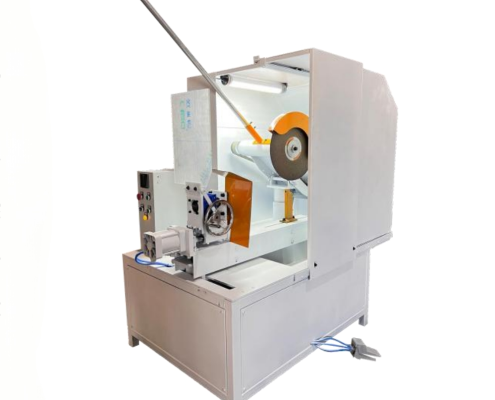

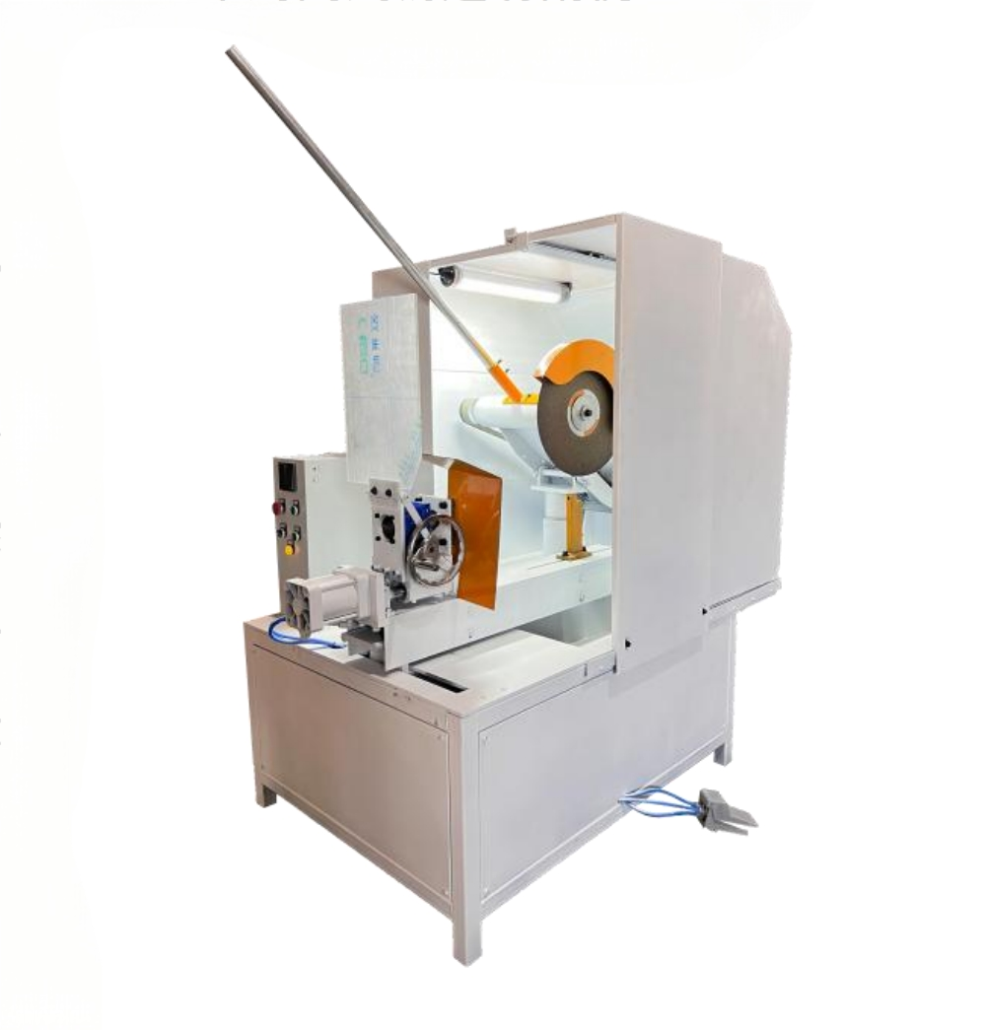

Semi-Enclosed Casting Cutting Machine – Model ZDB-400
Product Overview
Semi-Enclosed Casting Cutting Machine redefines safety and efficiency in metal cutting with its integrated dust-collection system and ergonomic one-touch operation. Designed for high-volume foundries and complex castings, this machine features a 190mm industrial suction port that captures 95% of airborne particles, complying with global workshop air-quality standards. The 7.5kW motor and multi-directional cutting head (adjustable vertically/horizontally) deliver precise cuts up to 300mm thick, while the auto-resetting clamp platform streamlines workpiece changes. Unlike open-frame cutters, its closed-door operation and foot-pedal pneumatic clamps maximize operator safety without sacrificing speed.
Product Advantages
1.Enhanced Operator Safety: The semi-enclosed design and interlocked safety doors prevent accidental contact with the cutting blade. The foot-pedal clamping system ensures hands-free operation, while emergency stops and auto-retract features minimize risks during unexpected events.
2.Superior Dust Control: Equipped with a 190mm high-power suction port, the machine captures 98% of airborne particles, keeping the workspace clean and compliant with industrial safety standards. The enclosed cutting chamber reduces dust exposure, improving air quality and operator health
3.Precision & Efficiency: The micro-adjustment cutting head ensures ±0.2mm accuracy, ideal for delicate castings. The vibration-dampening system extends blade life, while the auto-resetting clamp platform speeds up workpiece changes, boosting productivity.
Applications
1.Foundry & Metal Casting: Ideal for removing gates, risers, and feeders from iron, steel, and aluminum castings with clean, precise cuts. The semi-enclosed design contains sparks and debris, making it perfect for busy foundry environments.
2.Metal Fabrication & Recycling: Efficiently cuts thick metal plates, pipes, and scrap materials for recycling or repurposing. The powerful 7.5kW motor handles heavy-duty cutting tasks while maintaining stability and accuracy.
3.Automotive & Machinery Parts: Used for trimming and shaping components like engine blocks, gear housings, and structural parts. The adjustable cutting angles and secure clamping ensure consistent results for high-precision applications.
Specifications
| Model | ZDB-400 |
| Dimensions | 1800×1100×1800mm (L×W×H) |
| Motor Power | 7.5kW, 380V 3-phase |
| Cutting Capacity | Max. 300mm vertical stroke |
| Worktable Travel | 550mm (front/back), 250mm (left/right) |
| Clamping System | Foot-pedal pneumatic, 500mm range |
| Dust Extraction | 190mm diameter port, 99% efficiency |
| Safety Features | Door-interlocked power cutoff, emergency stop |
