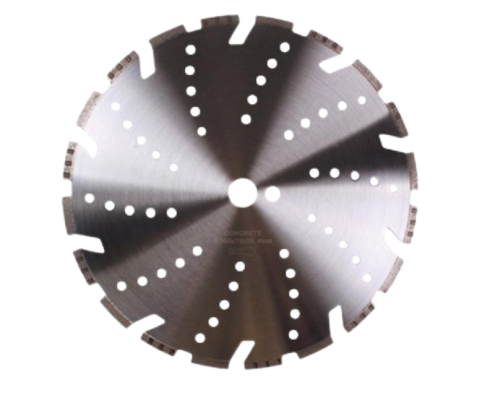

16″inch 400mm All Purpose Laser Disc
Product Overview
This all purpose laser disc features a reinforced steel core with diamond-studded segments and radial cooling vents, it stable thickness handles cuts up to 120mm deep in granite, ceramic, and steel-rebar concrete. Laser-fused diamond clusters maintain edge sharpness at 3,800-5,200 RPM, while the matte finish reduces glare in outdoor operations.
Product Advantages
1.Laser-Bonded Precision: Diamonds are fused 30% tighter than standard blades, eliminating grit loss during heavy-duty tasks like cutting quartzite or reinforced concrete.
2.Smart Cooling Design: Radial vents reduce blade temperature by 50%, supporting 6-hour continuous operation with water cooling systems.
3.Hybrid Edge Technology: Alternating tooth angles cut 15% faster in concrete while delivering polished edges on marble (Ra ≤3.0μm).
Applications
1.Tunnel Construction: Cut 150mm-thick concrete linings for subway projects (±1mm tolerance). Tip: Pair with 10″-14″ blades for optimal depth control.
2.Memorial Crafting: Engrave granite headstones without micro-chipping. Tip: Rotate blade direction every 200 cuts.
3.Industrial Flooring: Modify steel-rebar factory floors with 40% less sparking. Tip: Use 18″-24″ blades for wide-area cuts.
For optimal performance, pair 4″-7″ blades with angle grinders for detail work, 10″-14″ for masonry saws, and 18″-24″ for industrial floor cutters. Clean cooling holes weekly with compressed air and rotate blade orientation every 2 hours to evenly distribute wear. Lab tests confirm 20% longer lifespan than standard blades under equivalent conditions.
Specifications
| SIZE(mm) | INCH(mm) | HOLE(mm) | SECTION PARAMETER(mm) |
| 105 | 4” | 20/22.23 | 2.0*10 |
| 115 | 4.5” | 20/22.23 | 2.2*10 |
| 125 | 5” | 20/22.23 | 2.2*10 |
| 150 | 6” | 22.23/25.4 | 2.4*10 |
| 180 | 7” | 22.23/25.4 | 2.4*10 |
| 200 | 8” | 22.23/25.4 | 2.4*10 |
| 230 | 9” | 22.23/25.4 | 2.5*10 |
| 250 | 10” | 22.23/25.4 | 2.6*10 |
| 300 | 12” | 22.23/25.4/50 | 3.2*10 |
| 350 | 14” | 22.23/25.4 | 3.2*10 |
| 400 | 16” | 25.4/50 | 3.4*10 |
| 450 | 18” | 25.4/50 | 3.6*10 |
| 500 | 20” | 25.4/50 | 3.8*10 |
| 550 | 22” | 25.4/50 | 4.2*10 |
| 600 | 24” | 25.4/50 | 4.4*10 |
