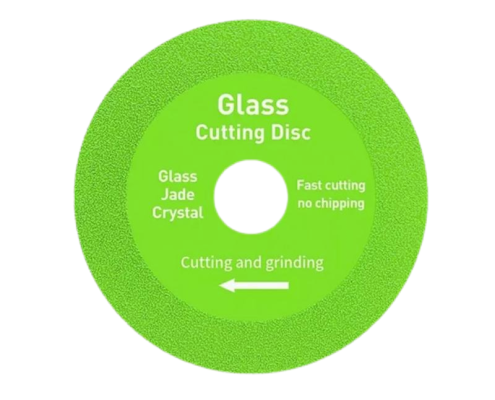

4.5″inch 115mm Ultra-Thin Diamond Cutting Wheel
Product Overview
This jade-green diamond cutting disc designed for glass, jade, and crystal processing, its electroplated diamond edge achieves zero micro-chipping through a patented 3-layer bonding technology. The 15mm cutting width balances precision and speed, slicing through 12mm-thick tempered glass at 3,800 RPM while generating minimal debris.
Product Advantages
1.Chip-Free Cutting: Micro-serrated diamond grits (80/100 mesh) prevent edge fractures in delicate materials like stained glass or nephrite jade.
2.Dual Grinding Mode: Reverse the disc to polish cut edges to Ra ≤1.6μm smoothness, eliminating separate grinding steps.
3.Instant Cool Operation: Laser-drilled micro vents reduce friction heat by 60%, protecting heat-sensitive opals or resin-embedded artworks.
Applications
1.Stained Glass Studios: Cut 10mm-thick cathedral glass panels for mosaic art without splintering. Tip: Use water spray for lead came joints.
2.Jade Carving Workshops: Shape raw nephrite blocks into pendants with 0.2mm precision. Tip: 45° cutting angle preserves rare gem material.
3.Architectural Glass: Modify laminated safety glass (up to 15mm) for custom skylight installations.
Packaged in crush-resistant PET cases with humidity-control silica gel, this green cutting disc’s edge stays sharp through 300+ glass-cutting cycles. The non-reflective coating prevents glare when working under studio lights. Store vertically in original packaging to maintain edge geometry.
Specifications
| SIZE(mm) | INCH(mm) | HOLE(mm) |
| 105 | 4” | 16 |
| 115 | 4.5” | 22.23 |
| 125 | 5” | 22.23 |
| 150 | 6” | 22.23 |
| 180 | 7” | 22.23 |
