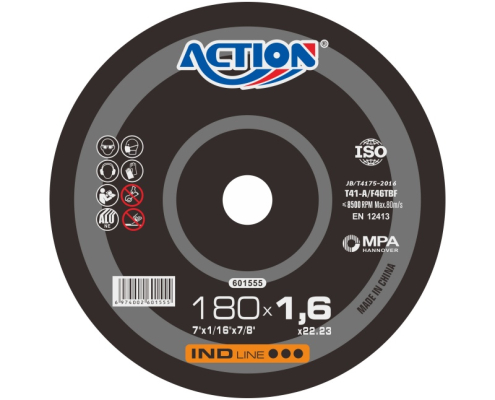

7″*1/12″*7/8″ 7inch 180 * 1.6mm Non-Ferrous Cutting Wheel
Product Overview
The 7-inch (180mm) non-ferrous cutting wheel is engineered for heavy-duty applications in industrial settings. Its 1.6mm thickness balances cutting depth and stability, making it ideal for thick aluminum plates, copper busbars, and brass fixtures. Featuring reinforced zirconia alumina grains and a laser-balanced core, this wheel maintains precision at 8,500 RPM while resisting vibration. The segmented rim design enhances chip evacuation, and the anti-static coating ensures safe operation in dusty environments. Trusted by automotive OEMs and shipyards, it complies with EN12413 standards for industrial safety.
Product Advantages
1.Deep-Cut Capacity: through 12mm aluminum slabs with minimal sparking.
2.Shock Absorption: Hexagonal fiberglass core neutralizes lateral forces during angled cuts, improving operator control.
3.Multi-Material Versatility: Effortlessly transitions between cutting copper, brass, and composite alloys without changing discs.
Applications
1.Marine Engineering: Prepare copper-nickel alloy pipes for offshore oil rig cooling systems.
2.Automotive Foundries: Cut thick aluminum engine blocks and transmission housings with precision.
3.Renewable Energy: Shape wind turbine copper windings and solar panel mounting brackets.
Specifications
| D x T x H mm | INCH | RPM | PCS/CTN | G.W. kg/CTN | L x W x H cm |
| 115*1.0*22.23 | 4-1/2“*3/64″*7/8″ | 13300 | 500 | 15 | 44*25*13 |
| 115*1.6*22.23 | 4-1/2“*1/16″*7/8″ | 13300 | 500 | 19 | 30*24*24 |
| 125*1.0*22.23 | 5″*3/64″*7/8″ | 12250 | 600 | 19 | 50*26.5*16 |
| 125*1.6*22.23 | 5″*1/16″*7/8″ | 12250 | 600 | 22 | 54*27*16 |
| 150*1.6*22.23 | 6“*1/12″*7/8″ | 10200 | 200 | 16 | 33*36*16 |
| 180*1.6*22.23 | 7“*1/12″*7/8″ | 8500 | 200 | 23 | 38*25*19 |
| 230*1.9*22.23 | 9″*1/12″*7/8″ | 6650 | 100 | 19 | 26*24*24 |
