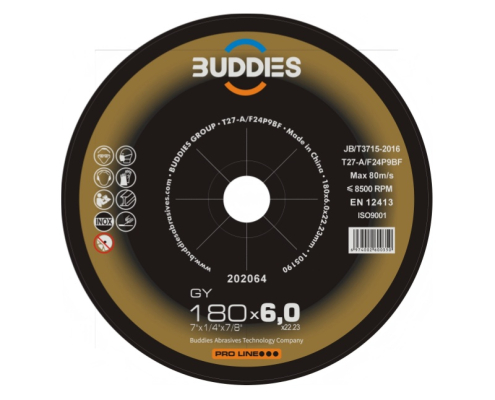

7″*1/4″*5/8’’inch 180*6.0mm Stainless Steel Grinding Wheel
Product Overview
The 180*6.0mm Edel Stahl Grinding Wheel employs hybrid zirconia-alumina abrasives for heavy material removal on thick stainless steel platesinch ≤25mm). Its structure reduces loading by 60%, while the dual resin-fiberglass reinforcement meets ANSI B7.1 safety protocols. Ideal for shipyards and oil refineries, this wheel achieves 2.5mm³/s stock removal rates at 8,500 RPM.
Product Advantages
1.Anti-Clogging Design: Porous grain structure expels metal particles during wet/dry grinding.
2.High-Torque Stability: Withstands 8500RPM rotational force for angle grinder compatibility.
3.Corrosion Resistance: Phenolic resin coating protects against acidic coolants in marine environments.
Applications
1.Shipbuilding: Removes weld spatter from Inox 316L hull panels without discoloration.
2.Petrochemical Plants: Prepares pipeline flanges for ultrasonic testing in sour gas service.
3.Food Processing Equipment: Polishes stainless steel mixer blades to 3-A sanitary standards.
Specifications
| D x T x H mm | INCH | RPM | PCS/CTN | G.W. kg/CTN | L x W x H cm |
| 100*6.0*16 | 4″*1/4″*5/8” | 15200 | 200 | 22 | 43*22*19 |
| 115*6.0*22.23 | 4-1/2″*1/4″*7/8” | 13300 | 200 | 16 | 25*25*19 |
| 125*6.0*22.23 | 5″*1/4″*5/8” | 12250 | 100 | 18 | 54*22*14 |
| 150*6.0*22.23 | 6″*1/4″*5/8” | 10200 | 100 | 25 | 63*19*16 |
| 180*6.0*22.23 | 7″*1/4″*5/8” | 8500 | 60 | 22 | 58*20*20 |
| 230*6.0*22.23mm | 9″*1/4″*5/8” | 6650 | 40 | 25 | 48*48*10 |
