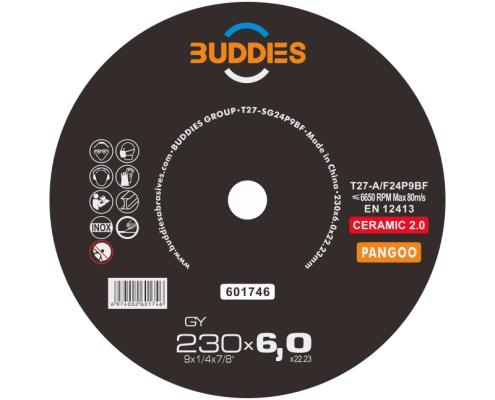

9″*1/4″*5/8’’inch 230 * 6.0mm Premium Ceramic Grinding Discs
Product Overview
The 9″ Premium Ceramic Grinding Disc is a heavy-duty solution for industrial-scale material removal, optimized for large workpieces like industrial kiln linings and turbine blade coatings. Featuring a self-sharpening ceramic abrasive, it efficiently dissipates grinding heat, enabling continuous operation at 6650 RPM and provide unmatched aggression on hardened workpiece, achieving material removal rates 50% faster than silicon carbide wheels. Its 5/8” reinforced hub ensures stability under extreme lateral forces, reducing vibration in high-torque applications.
Product Advantages
1.Industrial-Grade Durability: Reinforced fiberglass mesh prevents disc fracture under 6650 RPM, suitable for foundry and heavy machinery.
2.Reliable Consistency: Engineered for continuous use in harsh environments, the disc delivers uniform grinding outcomes without compromising accuracy over extended periods.
3.Eco-Friendly Design: Low-dust emission formula meets EU RoHS standards, enhancing workplace safety.
Applications
1.Weld Seam Removal in Shipbuilding
Efficiently grinds Inox 316L hull panel welds without spark risks, meeting marine corrosion resistance requirements.
2.Deburring Aerospace Components
Processes turbine blades and landing gear parts from 4340 steel with Ra ≤0.6μm precision surface finish.
3.Railway Track Switch Maintenance
Repairs AISI 1045 carbon steel rail mechanisms under live track conditions with non-sparking formula
Specifications
| D x T x H mm | INCH | RPM | PCS/CTN | G.W. kg/CTN | L x W x H cm |
| 100*6.0*16 | 4″*1/4″*5/8” | 15200 | 200 | 23 | 43*22*19 |
| 115*6.0*22.23 | 4-1/2″*1/4″*7/8” | 13300 | 200 | 16 | 25*25*19 |
| 125*6.0*22.23 | 5″*1/4″*5/8” | 12250 | 100 | 18 | 54*22*14 |
| 150*6.0*22.23 | 6″*1/4″*5/8” | 10200 | 100 | 25 | 63*19*16 |
| 180*6.0*22.23 | 7″*1/4″*5/8” | 8500 | 60 | 22 | 58*20*20 |
| 230*6.0*22.23 | 9″*1/4″*5/8” | 6650 | 40 | 26 | 48*48*10 |
