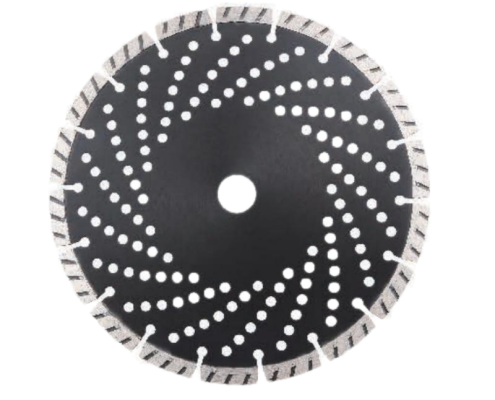

8″inch 200 mm Turbo Segmented Saw Blade
Product Overview
The turbo segmented saw blade is engineered for rapid, clean cutting of hard stone and composite materials. Crafted from high-manganese steel (Mn18Cr2), its turbo-style segmented design combines 24 laser-cut diamond segments with strategically placed airflow slots. This blade excels in cutting granite, marble, engineered quartz, and irregularly shaped stone blocks, achieving 30% faster material removal than standard blades while reducing heat buildup and dust.
Product Advantages
1.Turbo Cooling System: Angled airflow slots dissipate heat 50% faster and eject debris automatically, preventing blade clogging during deep cuts.
2.High Manganese Steel Core: Shock-resistant steel body (HRC 52-55) withstands heavy loads, ideal for bridge saws and CNC stone cutters (3,000-5,000 RPM).
3.Precision Diamond Segments: Electroplated diamond grits (40/50 mesh) maintain sharpness for 800+ cutting hours on granite and engineered stone.
Applications
1.Stone Processing Plants: Cut granite slabs, marble countertops, or quartz blocks into precise shapes with smooth edges.
2.Construction Sites: Rapidly process irregular stone pieces for wall cladding, flooring, or decorative pillars.
3.Monument Workshops: Engrave intricate designs on memorial stones or sculptures without edge chipping.
Manufactured using automachine welding technology in ISO-certified facilities, this turbo segmented saw blade undergoes strict dynamic balance testing (±0.01mm tolerance). The black anti-corrosion coating protects against water and stone slurry, while the laser-etched rotation arrow ensures correct installation.
Specifications
| SIZE(mm) | INCH(mm) | HOLE(mm) | SECTION PARAMETER(mm) |
| 105 | 4” | 20/22.23 | 2.0*7/10 |
| 110 | 4.3” | 20/22.23 | 2.0*7/10 |
| 115 | 4.5” | 20/22.23 | 2.0*7/10 |
| 125 | 5” | 20/22.23 | 2.0*7/10 |
| 150 | 6” | 22.23/25.4 | 2.2*7/10 |
| 180 | 7” | 22.23/25.4 | 2.4*7/10 |
| 200 | 8” | 22.23/25.4 | 2.4*7/10 |
| 230 | 9” | 22.23/25.4 | 2.8*7/10 |
| 250 | 10” | 22.23/25.4 | 2.8*7/10 |
| 300 | 12” | 22.23/25.4/50 | 3.2*7/10 |
| 350 | 14” | 22.23/25.4/50 | 3.2*7/10 |
| 400 | 16” | 22.23/25.4/50 | 3.8*7/10 |
