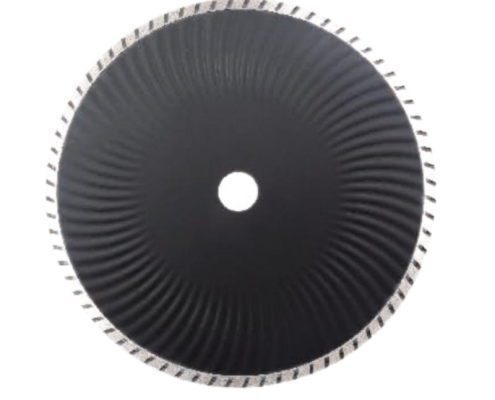

9″inch 230mm Turbo Ware Saw Wheel
Product Overview
The turbo ware saw wheel revolutionizes material processing with its wave-patterned edge design. Featuring evenly spaced concave-convex teeth, this turbo wave saw wheel disperses cutting forces evenly, reducing resistance by 35% during operation. The wave-shaped gaps between teeth accelerate heat dissipation and eject dust/debris automatically, ensuring consistent cutting speed and extended blade life. Ideal for concrete, bricks, marble, ceramic tiles, and sheet materials.
Product Advantages
1.Wave-Enhanced Stability: Balanced force distribution minimizes blade deflection, achieving ±0.2mm cutting accuracy on uneven surfaces. Operates smoothly at 3,000-4,500 RPM.
2.Self-Cleaning Design: Wave gaps clear 90% of dust during cutting, preventing clogging and reducing downtime by 25%.
3.Versatile Material Handling: Carbide-tipped teeth with diamond coating cut through concrete (50mm depth) and ceramic tiles without chipping.
Applications
1.Building Renovation: Cut concrete walls, brick layers, or floor tiles for plumbing and electrical installations.
2.Stone & Tile Workshops: Trim marble slabs or ceramic tiles to precise dimensions for countertops and wall panels.
3Prefab Construction: Process cement boards and insulation panels rapidly for modular housing projects.
Produced using precision stamping technology in ISO-certified factories, this turbo wave saw wheel undergoes rigorous vibration tests. Available in 4”-16” diameters, it fits most handheld cutters and stationary saws. The anti-rust nickel plating ensures durability in humid environments, while the laser-etched depth markers simplify alignment.
Specifications
| SIZE(mm) | INCH(mm) | HOLE(mm) | SECTION PARAMETER(mm) |
| 105 | 4” | 20/22.23 | 2.0*7/10 |
| 110 | 4.3” | 20/22.23 | 2.0*7/10 |
| 115 | 4.5” | 20/22.23 | 2.0*7/10 |
| 125 | 5” | 20/22.23 | 2.0*7/10 |
| 150 | 6” | 22.23/25.4 | 2.2*7/10 |
| 180 | 7” | 22.23/25.4 | 2.4*7/10 |
| 200 | 8” | 22.23/25.4 | 2.4*7/10 |
| 230 | 9” | 22.23/25.4 | 2.8*7/10 |
| 250 | 10” | 22.23/25.4 | 2.8*7/10 |
| 300 | 12” | 22.23/25.4/50 | 3.2*7/10 |
| 350 | 14” | 22.23/25.4/50 | 3.2*7/10 |
| 400 | 16” | 22.23/25.4/50 | 3.8*7/10 |
